CHECK
V/V(D)(Flange-Connections)
|
|
|
|
|
|

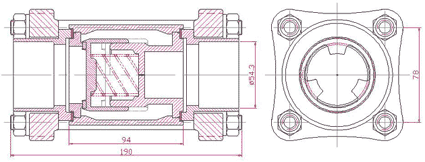

CHECK VALVE (D)-(FLANGE
CONNECTIONS) |
|
SPECIAL FEATURE |
Prevention Valve for flowing backward of
fluid. |
|
SPEC |
2" 40/50A |
|
TEST
SPECIFICATIONS |
Test for inner
pressure |
Hydraulic pressure - 50Kg/㎝² |
|
Test for aerial density |
Hydraulic pressure - 30Kg/㎝²(120/sec.) |
|
Test for operation |
Under 20000 times operation in 1 minute for 3 times |
|
He. TEST |
Under 1.0 x 10-ª ATM cc/sec |
|
|
|
